Axis HA Front Wing - Carbon with cover

The AXIS S-Series 1000mm or 900

THIS WING IS ONLY COMPATIBLE WITH THE RED SERIES FUSELAGES

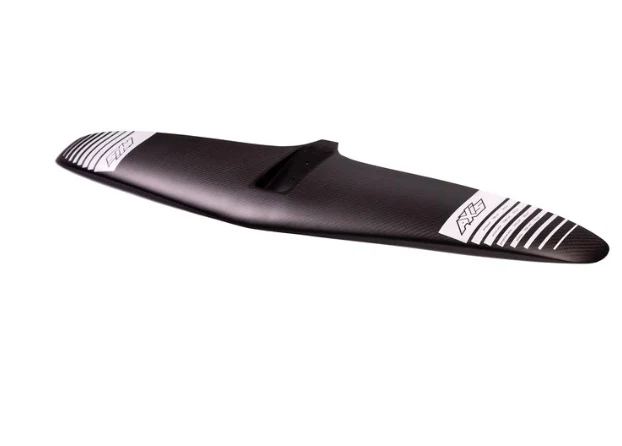

Carbon Front wing is the bigger brother of the AXIS S-Series 900mm Carbon Front wing. Designed with Downwinding in mind, the 1000 has tremendous amount of glide, and only one speed setting - FAST. The 1000 wing also works well on fast riding smaller bumps, as well as wind foiling for heavier riders or lighter winds. 2021 graphics on the wings give you all possible measurements so you can best compare and also quickly swap pieces or get new accessories for your foil.1000mm Carbon Wing

Technical Data:MAX CHORD: 160mm

ACTUAL AREA 1388 square cm / 215 square inches

SPAN: 1000 mm / 39.5 inches

PROJECTED AREA: 1310 square cm / 203 square inches

VOLUME: 1904 cubic cm / 116 cubic inches

Recommended use:Downwinding - High Performance / Pro / Lighter windSUP / Surf - High Performance / smaller wavesWindsurfing - Freeride / Easy ride

Suggested Rear Wing:Rear Wing 500 Anhedral Carbon (Wind foiling)Rear Wing 440 or 400 Carbon (High Performance Surf / Pro downwinding)When you purchase the AXIS S-Series 1000mm carbon front wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.



-------------------------------------------------------------------------

The AXIS S-Series 900mm -

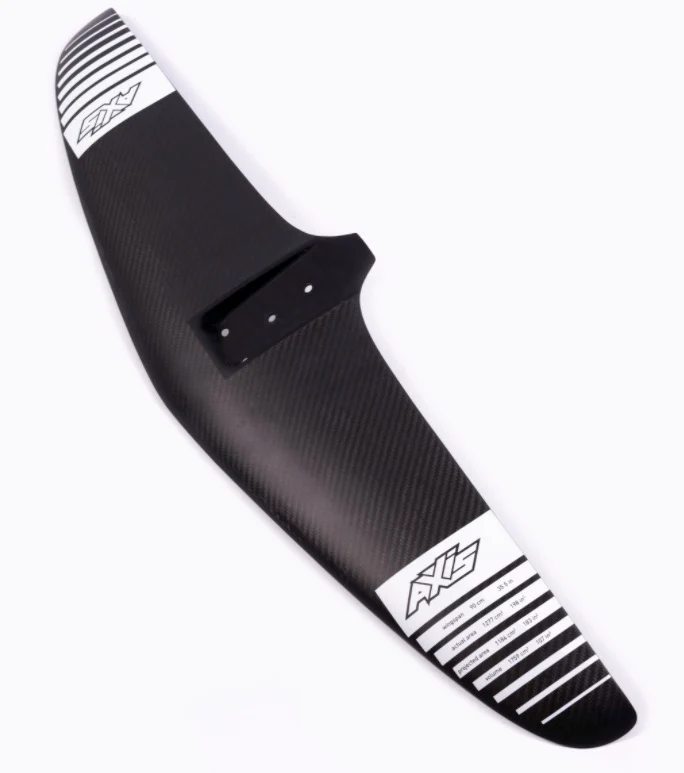

ACTUAL AREA: 1277 square cm The AXIS S-Series 900mm (wingspan) Carbon Front wing is a higher aspect performance front wing for SUP, Surf, Wind, Downwind and Pump foiling. With a 1277cm2 surface this is very fast wing designed for the intermediate and advanced riders who are looking for stability in higher speeds. Also an amazing wing for wind foiling.It will take a few sessions to get used to it, and when you do, you won't go back. Match the 900 carbon front wing with the Short or Ultra Short fuselage and 400 or 440 rear wings for a loose, fast and carvy ride.Graphics on the wings give you all possible measurements so you can properly compare with other wings and foils and quickly swap to other sizes as needed. 900mm WING

Technical Data

ACTUAL AREA: 1277 square cm / 198 square inches

CHORD: 160mm

SPAN: 90 cm / 35.5 inchesPROJECTED AREA: 1184 square cm / 183 square inches

VOLUME: 1759 cubic cm / 107 cubic inches

Recommended use:Performance SUP, Downwind, SURF, Pump, WindSuggested Rear Wings:Rear Wing 500mm CarbonRear Wing 500mm Anhedral CarbonRear Wing 440mm CarbonRear Wing 400mm Carbon

Suggested Fuselages:S-Series U-SHORT / Short or Standard Fuselage
